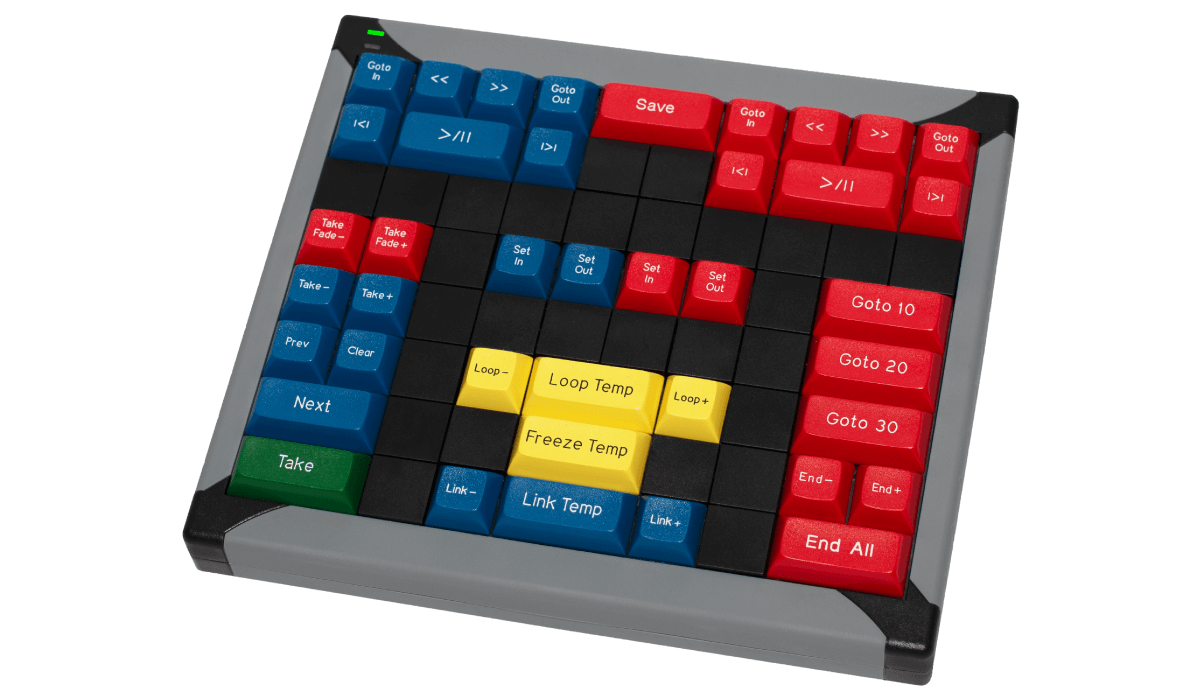

The UC40 was built for single system PlaybackPro Plus control. The buttons for clip setup and show control are color coded and easily accessible for all essential functions.
| UC12 | UC40 | DT18 | |
|---|---|---|---|
| Specifications | |||
| Works With | PlaybackPro all versions PlaybackPro Plus all versions |
PlaybackPro all versions PlaybackPro Plus (recommended) all versions |
PlaybackPro Plus v3.8.0+ PlaybackPro Plus X v4.0+ |
| Number Systems | 1 | 1 | 1 to 4 | Connection | USB | USB | Ethernet |
| Commands | Keystrokes1 | Keystrokes1 | Direct to App1 |
| Number Of Buttons | 12 | 40 | 18 |
| Number Of Functions | 12 | 40 | 27 |
| Buttons | Un-lit | Un-lit | Professional Grade Backlit Buttons |
| Height | 1.65" (4.19cm) | 1.63" (4.14cm) | 2.12" (5.39cm) |
| Width | 3.79" (9.63cm) | 8.25" (20.95cm) | 6.42" (16.31cm) |
| Depth | 5.80" (14.73cm) | 7.25" (18.41cm) | 7.07" (17.96cm) |
| Weight | 9.6oz (.27kg) | 24.8oz (.70kg) | 29oz (.82kg) |
| Power | USB | USB | External Input 110-240V~0.8A, 50-60Hz Output 12v DC, 2.5A |
| Firmware Update | Not Available | Not Available | From App |
| Latest Firmware Version | Not Available | Not Available | 1.0 |
| Made In | Taiwan | Taiwan | USA |
| Certifications |   |
|
|
| Price | $249 | $425 | $799 |
1 - Keystroke commands are received by the application currently selected in the OS (in “focus”).
Direct to App commands are sent directly to a specific application regardless of window selection in the OS.
| UC12 | UC40 | DT18 | |
|---|---|---|---|
| Show Controls | |||
| Delay |  |
||
| Loop Temp | |
|
|
| Loop - | |
|
|
| Loop + | |
|
|
| Link Temp | |
|
|
| Link - | |
|
|
| Link + | |
|
|
| Freeze Temp | |
|
|
| Move To Top Of Playlist | |
||
| Move To Bottom Of Playlist | |
||
| Activate/Deactivate Ethernet Channels | |
||
| Multiple Or Individual PlaybackPro Plus Control | |
||
| Playback Functions | |||
| Play/Pause | |
|
|
| Take | |
|
|
| Next | |
|
|
| Previous | |
|
|
| Clear | |
|
|
| Goto 10 | |
|
|
| Goto 20 | |
|
|
| Goto 30 | |
|
|
| End All | |
|
|
| End - | |
|
|
| End + | |
|
|
| Take Fade - | |
|
|
| Take Fade + | |
|
|
| Take - | |
|
|
| Take + | |
|
|
| Clip and Show Preparation | |||
| Save | |
|
|
| Fast Reverse | |
||
| Fast Forward | |
||
| Step Back 1 Frame | |
||
| Step Forward 1 Frame | |
||
| Set In | |
||
| Set Out | |
||
| Goto In | |
||
| Got Out | |
||
| Play/Pause | |
||
